With meticulous design and versatility, the SIM8260G-M2 is integrated with interfaces such as PCIe, USB3.1, GPIO, etc. The module provides applications with high flexibility and strong integration capability.
The SIM8260G-M2 adopts an M.2 form factor. Its AT commands are compatible with the SIM8200 series modules, helping to reduce customer costs and shorten time to market.
The module is designed for applications requiring high-volume data transmission in various wireless scenarios. Thanks to its high performance, security, and flexibility, the module is suitable for a wide range of applications.
Specifications:

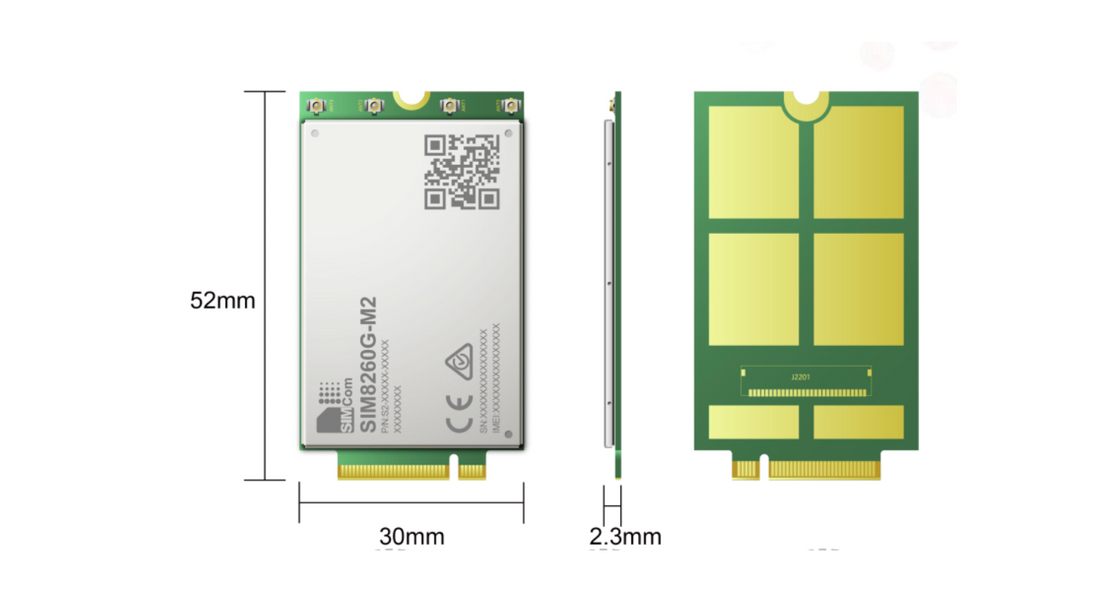

- Form Factor: M.2
- Dimensions(mm): 52.0*30.0*2.3
- Supply Voltage(V): 3.135 ~ 4.4
- Temperature: -30°C ~+70°C
- Extended Temperature Range: -40°C +85°C
- SIM Card: 1.8V/2.95V
- Regulatory: CE(RED)/UKCA/FCC/IC/RCM/RoHS/REACH/TELEC/JATE
Advantages:
· M2 form factor with various interfaces
· Huge data transmission
· AT commands of SIM8260G-M2 compatible with SIM8200 series modules
Applications:
- CPE, Smart gateway
- Live streaming
- Remote medical treatment
- Intelligent security
Learn more: SIM8260G-M2
