The SIM7912G-M2 is a high-performance 5G NR Sub-6GHz module developed by SIMCom, designed in the M.2 (NGFF – Key B) form factor to meet the growing demand for high-bandwidth data transmission and stable connectivity in modern industrial environments. Supporting 5G NR in both SA and NSA modes, LTE-Advanced Pro, and WCDMA, the SIM7912G-M2 delivers exceptional data throughput, ultra-low latency, and highly reliable wireless performance, making it ideal for applications requiring real-time responsiveness.
Equipped with high-speed interfaces such as USB 3.1 and PCIe, the module integrates easily into devices including industrial routers, IoT/AIoT gateways, AI camera systems, embedded PCs, smart measurement devices, and factory automation equipment. In addition, the SIM7912G-M2 supports multi-constellation GNSS (GPS/GLONASS/BeiDou/Galileo), enabling precise positioning for applications that require location tracking or time synchronization.
Optimized for industrial-grade deployment, the module ensures stable operation across wide temperature ranges, supports extensive global frequency bands, and is compatible with major operating systems such as Linux, Android, and Windows. With its hardware flexibility and high reliability, the SIM7912G-M2 provides a powerful solution for enterprises building next-generation 5G connectivity systems, targeting high performance, scalability, and long-term dependability.
Specifications:
-
Network Support: 5G NR Sub-6GHz (SA/NSA), LTE-A Pro, WCDMA
-
Data Rates: 5G DL up to ~2.1Gbps, UL up to ~500Mbps
-

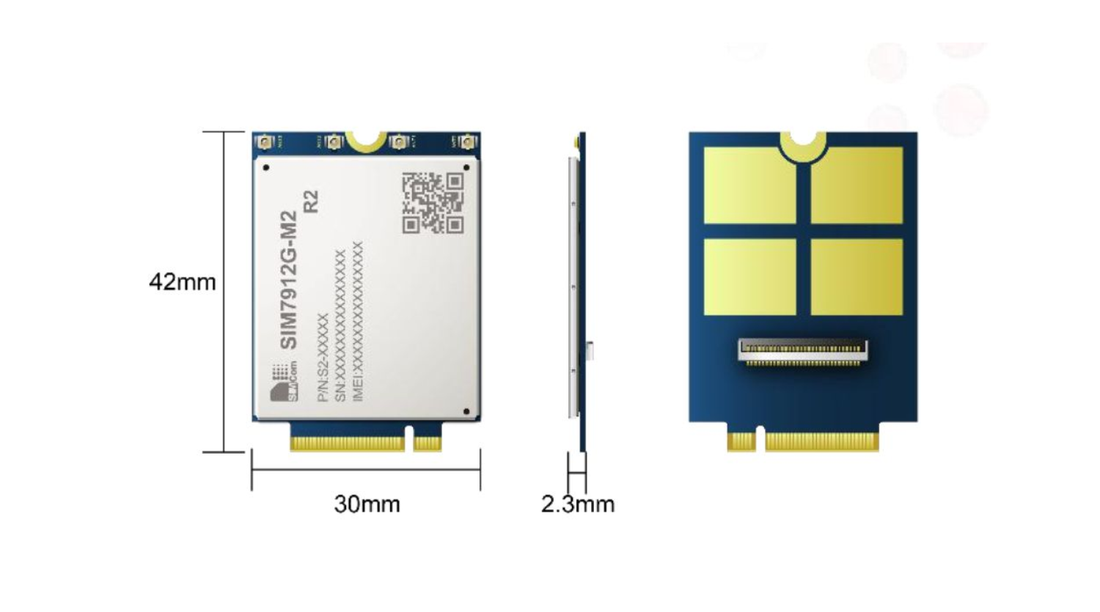

Form Factor: M.2 (NGFF) – Key B
-
Hardware Interfaces: USB 3.1, PCIe, UART
-
GNSS Positioning: GPS / GLONASS / BeiDou / Galileo
-
Additional Features: VoLTE, eSIM (depending on version)
-
Operating Systems: Linux, Android, Windows
-
Power Requirements: 3.3V per M.2 specification
-
Operating Temperature: Industrial-grade wide temperature range
Advantages:
-
High-performance 5G connectivity with fast downlink/uplink speeds for real-time applications
-
M.2 (NGFF) form factor, enabling easy integration into compact industrial designs
-
Wide global band support, suitable for deployment across multiple regions
-
Low latency communication, ideal for AI, edge computing, and automation systems
Applications: Low-latency
-
5G routers
-
AIoT gateways
-
AI cameras
-
Industrial IoT devices
---
