The SIM7600G-H-M.2 series is the LTE Cat 4 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE, etc. It supports a maximum 150Mbps downlink rate and 50Mbps uplink rate.
The SIM7600G-H-M.2 series adopts the M.2 form factor and consists of a SIM7600-H series module and an M.2 adapter board. It is easy for customers to integrate.
The SIM7600G-H-M.2 series integrates multiple satellite high-accuracy positioning GNSS systems, with multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux, and Android, etc.), and software functions. AT commands are compatible with SIM7500/SIM7600 series modules.
Meanwhile, the SIM7600G-H-M.2 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics etc.
Specifications:
- GNSS: GPS, Beidou, GLONASS, GALILEO, QZSS
- Operating system: Windows/Linux/Android
- Protocol: TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
- SMS: Supports MT, MO, CB, Text, PDU
- Firmware upgrade: USB/FOTA
- Power supply: 3V ~ 4.2V
- Form factor: M.2 B KEY

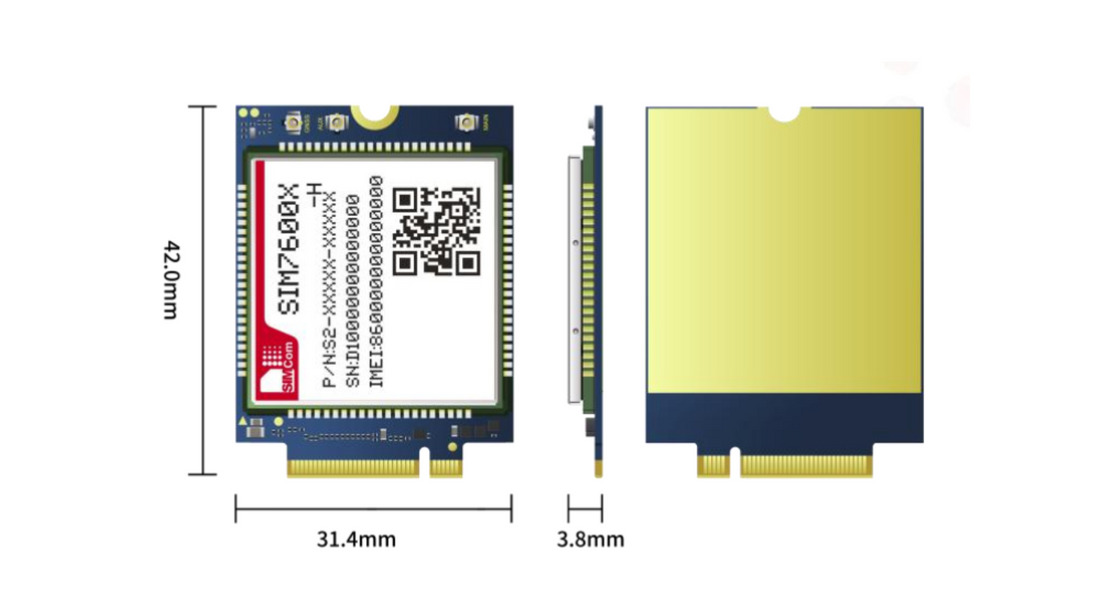

- Dimensions: 42.0 × 31.4 × 3.8mm
- Operating temperature: -40℃ ~ +85℃
Advantages:
- M2 interface with strong compatibility
- Suitable for LTE, UMTS and GSM networks with global coverage
- Abundant software functions: FOTA, LBS, TLS
- Multi-constellation GNSS receiver support
- AT commands of the SIM7600-H-M2 series are compatible with the SIM7500/SIM7600 series modules.
Applications:
- IoT as telematics, surveillance devices
- CPE
- Industrial routers and remote diagnostics
Learn more: SIM7600G-H-M.2 series
---
